• Application: Drone, eBike, e-Scooter, Segway, Rescue Charger, Photography Equipment, Toy Charger, Medical Device Cable, Charger Device Connector and Cable Plug, EV Charging Station, ESC Solution(Electronic Speed Control)

    Energy Equipment Connector Solution Catalog

Total of 10 results
Please Click products below, and click Add to Inquiry List for inquiry.

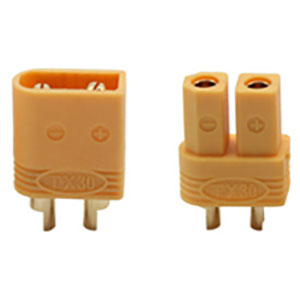

  • KMXT30M RC Battery Energy Connector XT30

    Description:

    • Model: XT30 Male Connector
    • P/N: KMXT30M
    • Pin Counts: 2 poles
    • Instantaneous Current Rate: 30A
    • Current Rate: 15A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 15N~50N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:18 AWG

    Application: RC Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

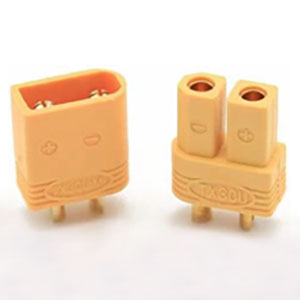

  • KMXT30F RC Battery Energy Connector XT30

    Description:

    • Model: XT30 Female Connector
    • P/N: KMXT30F
    • Pin Counts: 2 poles
    • Instantaneous Current Rate: 30A
    • Current Rate: 15A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 15N~50N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:18 AWG

    Application: Application: RC, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

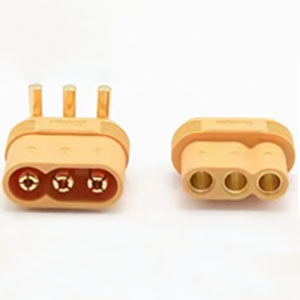

  • KMMR30M RC Battery Energy Connector MT60

    Description:

    • Model: MT60 Male Connector
    • P/N: KMMT60M
    • Pin Counts: 3 poles
    • Instantaneous Current Rate: 30A
    • Current Rate: 15A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 20N~85N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:16 AWG

    Application: RC Power Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

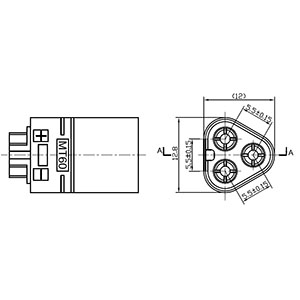

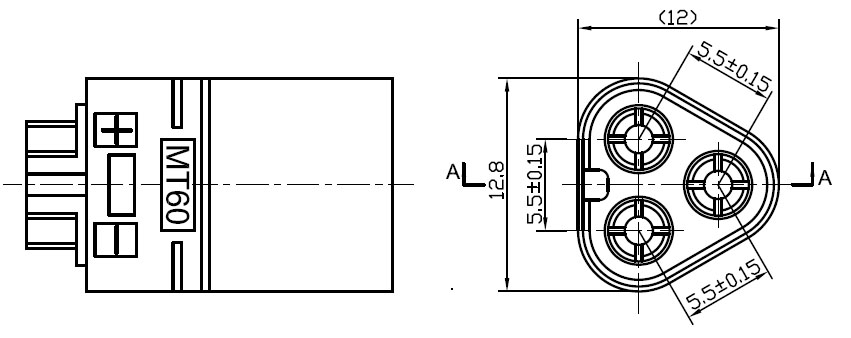

  • KMMT60M RC Battery Energy Connector MT60

    Description:

    • Model: MT60 Male Connector
    • P/N: KMMT60M
    • Pin Counts: 3 poles
    • Instantaneous Current Rate: 60A
    • Current Rate: 30A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 30N~120N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:12 AWG

    Application: Application: RC, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

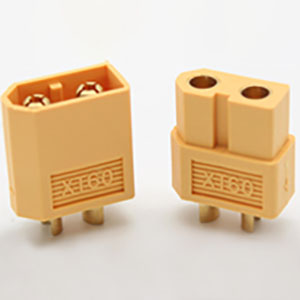

  • KMXT60F RC Battery Energy Connector XT60

    Description:

    • Model: XT60 Female Connector
    • P/N: KMXT60F
    • Pin Counts: 2 poles
    • Instantaneous Current Rate: 60A
    • Current Rate: 30A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 25N~80N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:12 AWG

    Application: RC Power Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


  • KMXT60M RC Battery Energy Connector XT60

    Description:

    • Model: XT60 Male Connector
    • P/N: KMXT60M
    • Pin Counts: 2 poles
    • Instantaneous Current Rate: 60A
    • Current Rate: 30A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 25N~80N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:12 AWG

    Application: RC Power Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

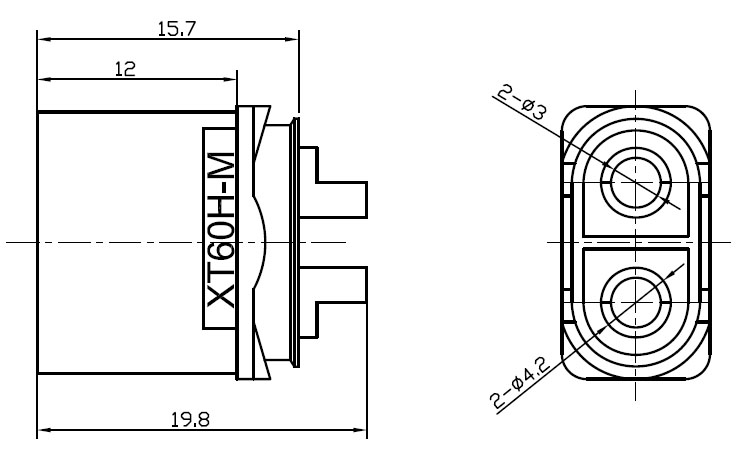

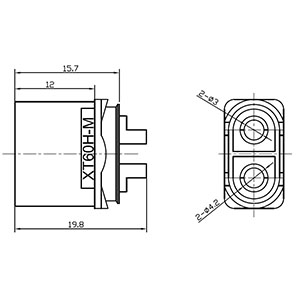

  • KMXT60HM RC Battery Energy Connector XT60HM

    Description:

    • Model: XT60HM Male Connector
    • P/N: KMXT60M
    • Pin Counts: 2 poles
    • Instantaneous Current Rate: 60A
    • Current Rate: 30A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 25N~80N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:12 AWG

    Application: RC Power Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

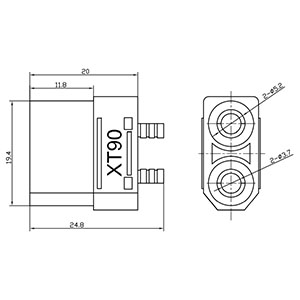

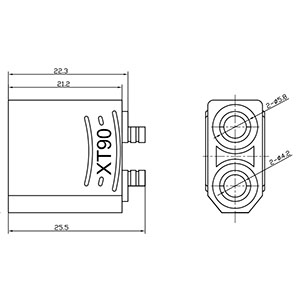

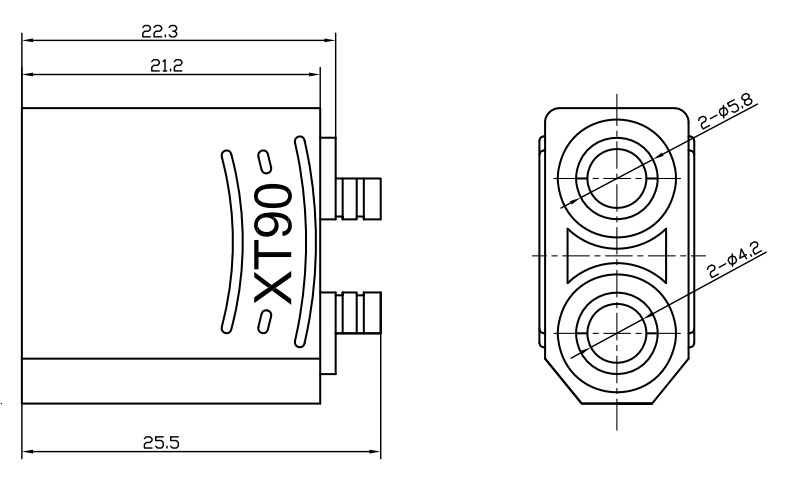

  • KMXT90M RC Battery Energy Connector XT90

    Description:

    • Model: XT90 Male Connector
    • P/N: KMXT90M
    • Pin Counts: 2 poles
    • Instantaneous Current Rate: 90A
    • Current Rate: 40A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 30N~100N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:10 AWG

    Application: RC Power Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

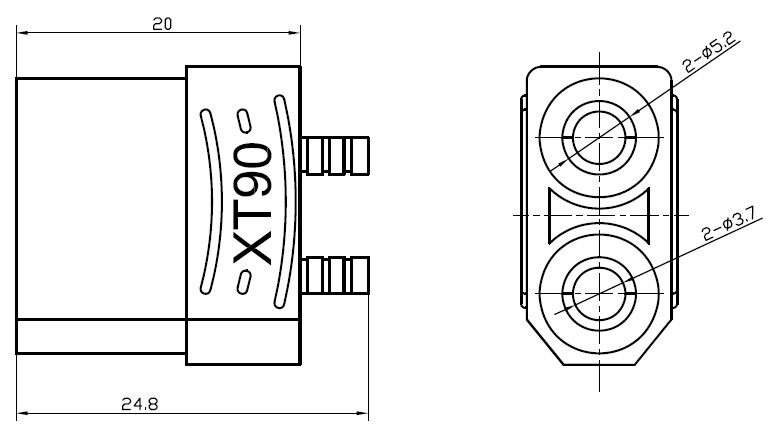

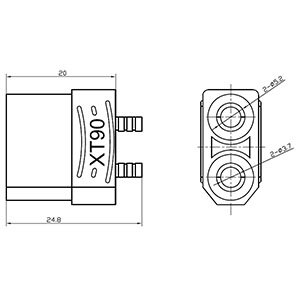

  • KMXT90F RC Battery Energy Connector XT90

    Description:

    • Model: XT90 Female Connector
    • P/N: KMXT90F
    • Pin Counts: 2 poles
    • Instantaneous Current Rate: 90A
    • Current Rate: 40A
    • Voltage Rate: 500V DC
    • Cycle Rate: min 1,000 cycles
    • Insertion/Withdrawl force range: 30N~100N
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:10 AWG

    Application: RC Power Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF

  • KMXT90HHT RC Battery Energy Connector XT90H

    Description:

    • Model: XT90H Sheath
    • Mapping Product: XT90H-M/F (Male & Female Type)
    • P/N: KMXT90HHT
    • Pin Counts: 2 poles
    • Operation Temperature: -20 ~ +120 degree
    • Cable Gauge Request:10 AWG

    Application: RC Power Connector, Drone, eBike, eCar, Energy Connector, Power Connector, Automotive Connector, Vehicle and Car Battery Connector


    PDF
