• M.2 Socket

Total of 8 results
Please Click products below, and click Add to Inquiry List for inquiry.

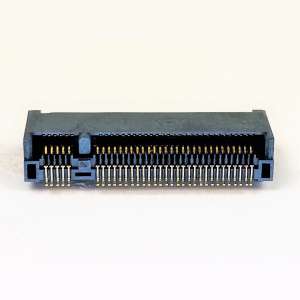

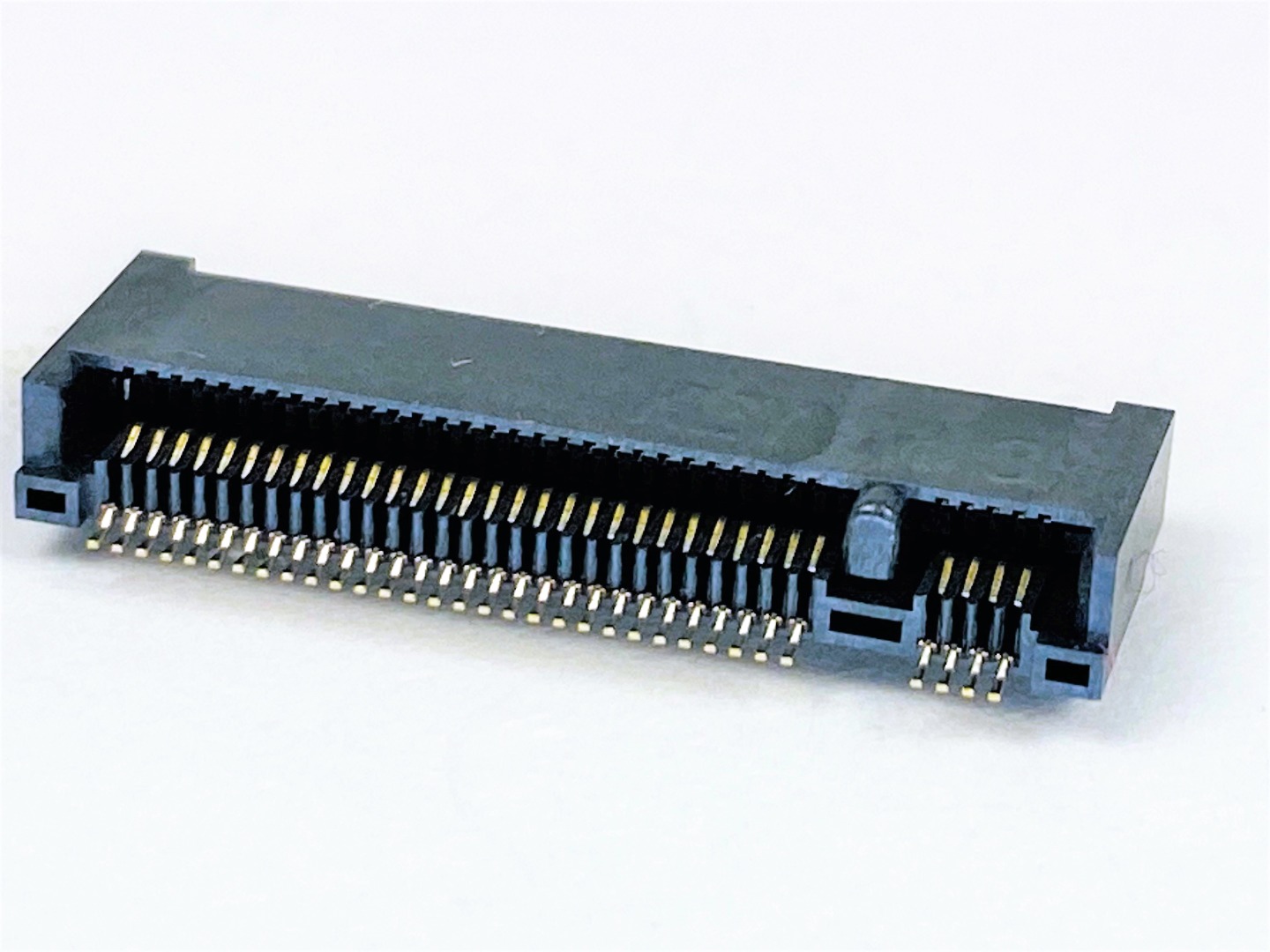

  • M.2 connector, H=3.0mm, M Key connector

    P/N: M2HXXABEM-XXX-IMG_9337 (2) M.2 connector, H=3.0mm, M Key connector

    Description: (NGFF) M.2 socket

    SPEC & Feature:

    • M.2 PCB connector, SMT Type
    • M Key connector
    • Position: 67pins, Pitch=0.5mm
    • Connector Height=3.0mm
    • Designed for both single- and double-sided modules
    • Available in standard M.2 SSD module and various M key PCB cards
    • Support PCI Express 3.0, USB 3.0, and SATA 3.0 interface
    • R/A Type, Horizontal with SMD Type
    • Plastic housing

    Application: Standard SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module socket, Networking Storage Device Connector

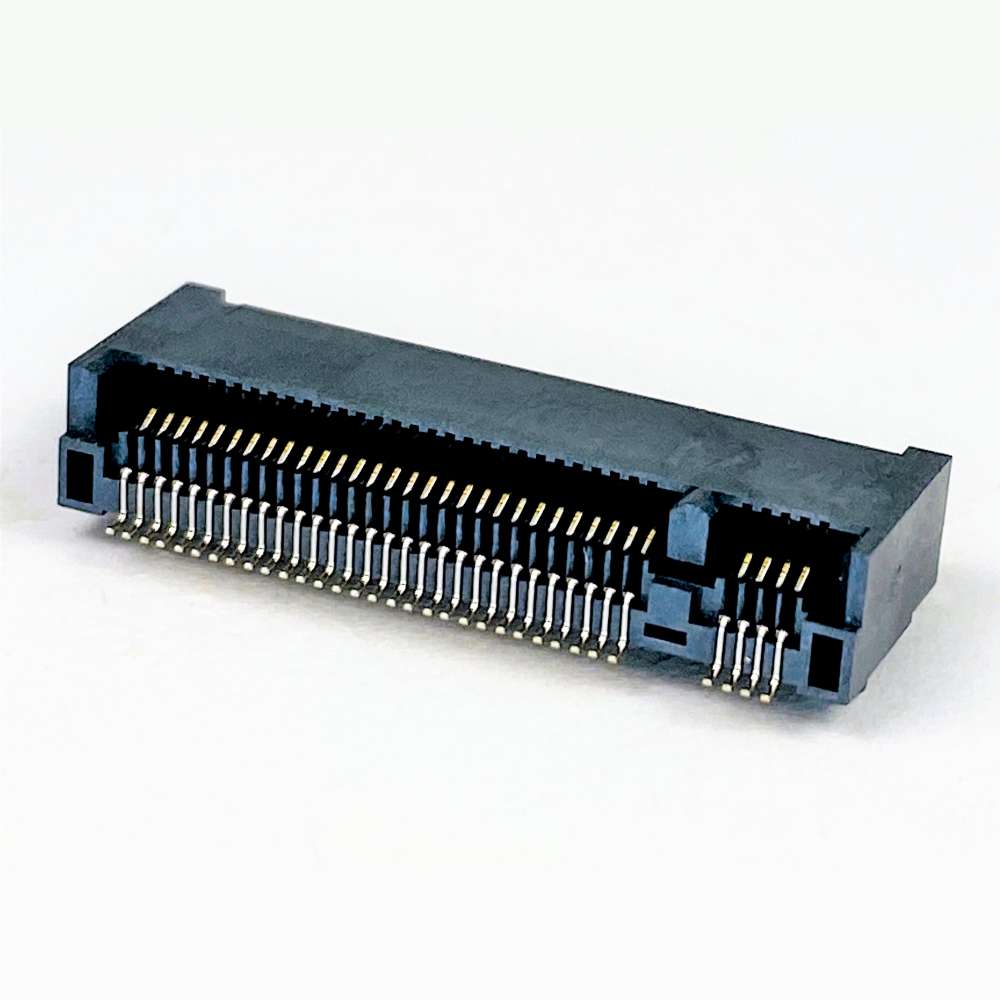

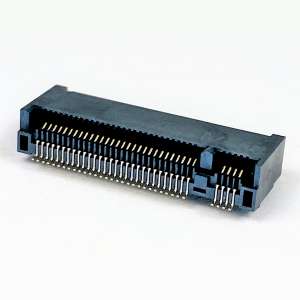

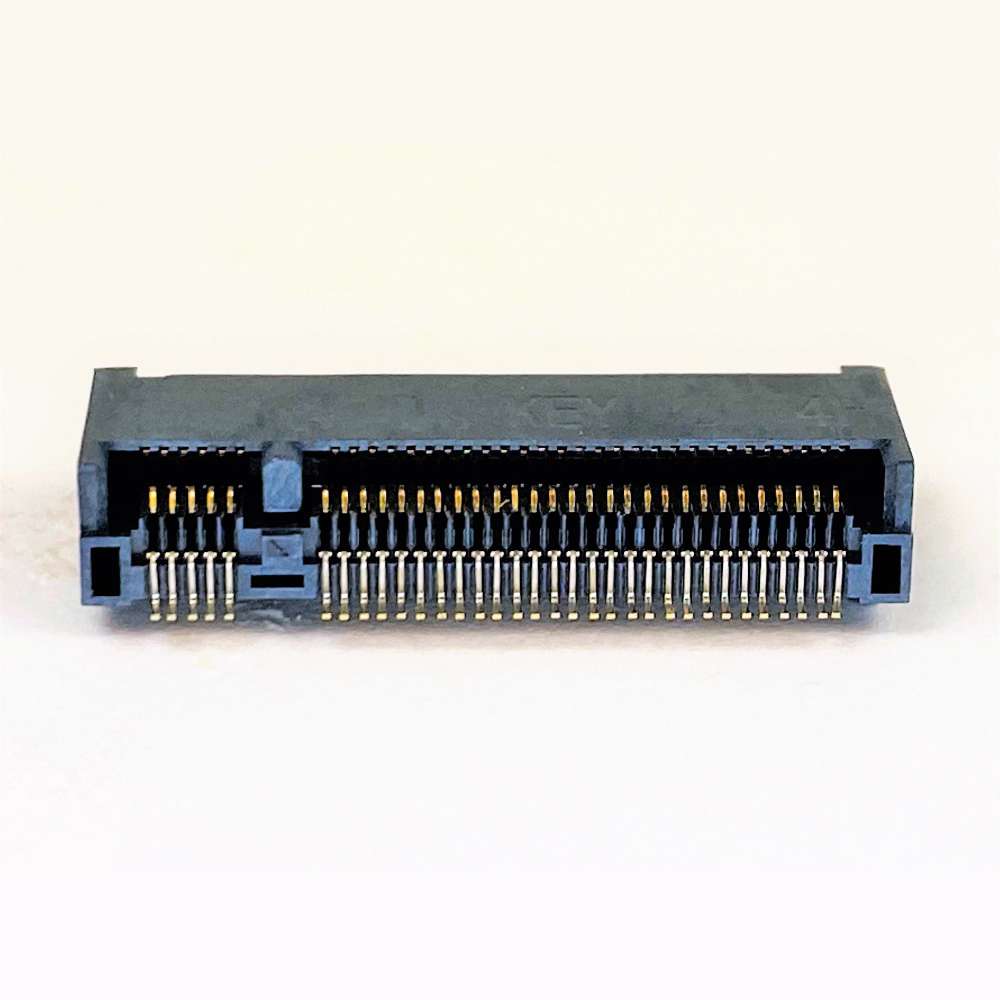

  • H=4.0mm A Key connector

    P/N: M2HXXABEM-XXX-IMG_9344 (2) H=4.0mm A Key connector

    Description: (NGFF) M.2 socket

    SPEC & Feature:

    • M.2 module connector
    • A Key connector, SMT Type
    • Position: 67pins, Pitch=0.5mm
    • Designed for both single- and double-sided modules
    • Available in M.2 SSD A key module cards
    • Support PCI Express 3.0, USB 3.0, and SATA 3.0 interface
    • Connector Height=4.0mm
    • R/A Type, Horizontal SMD Type
    • Plastic

    Application: SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module socket, Networking Storage Device connector

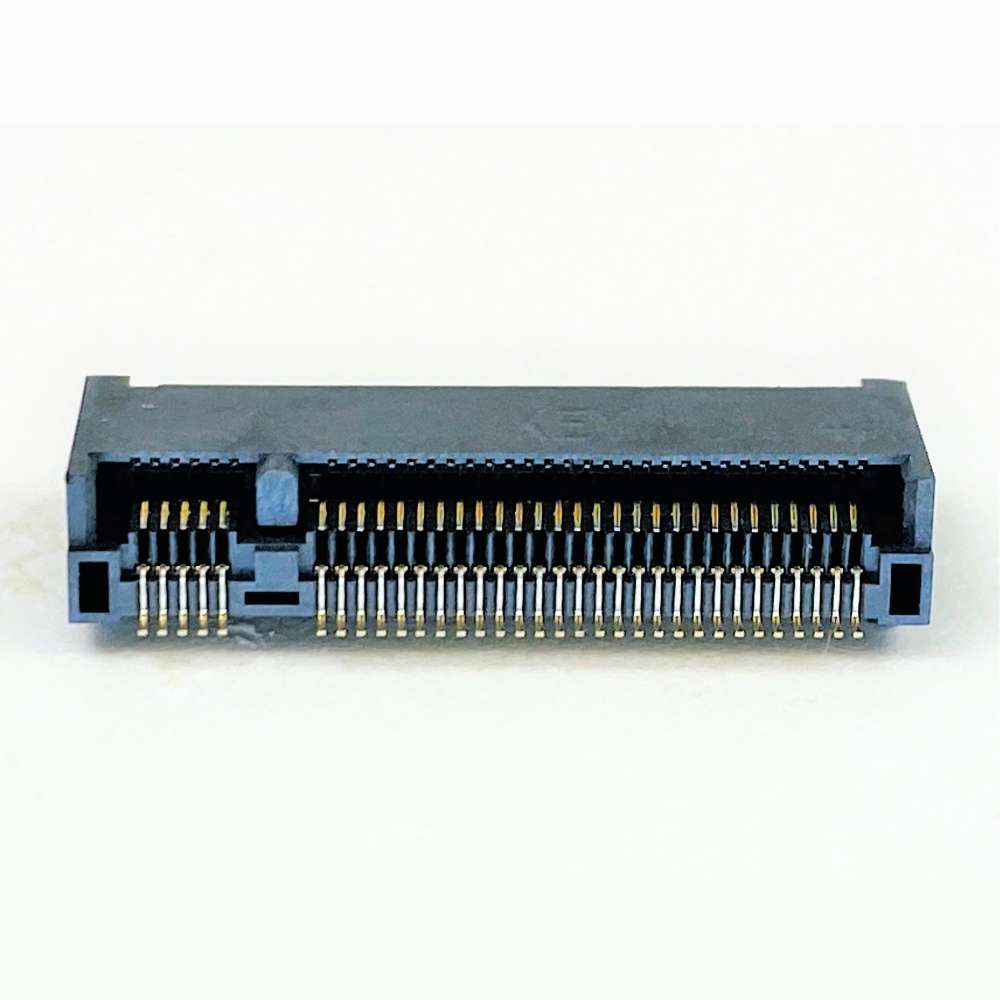

  • H=4.0mm B Key connector

    P/N: M2HXXABEM-XXX-IMG_9347 (3) H=4.0mm B Key connector

    Description: (NGFF) M.2 socket

    SPEC & Feature:

    • M.2 SSD module socket
    • B Key connector, SMT Type
    • Position: 67pins, Pitch=0.5mm
    • Designed for both single- and double-sided modules
    • Available in various keying options for module cards
    • Support PCI Express 3.0, USB 3.0, and SATA 3.0 interface
    • Connector Height=4.0mm
    • R/A Type, Horizontal SMD Type
    • Plastic

    Application: SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module socket, Networking Storage Device connector

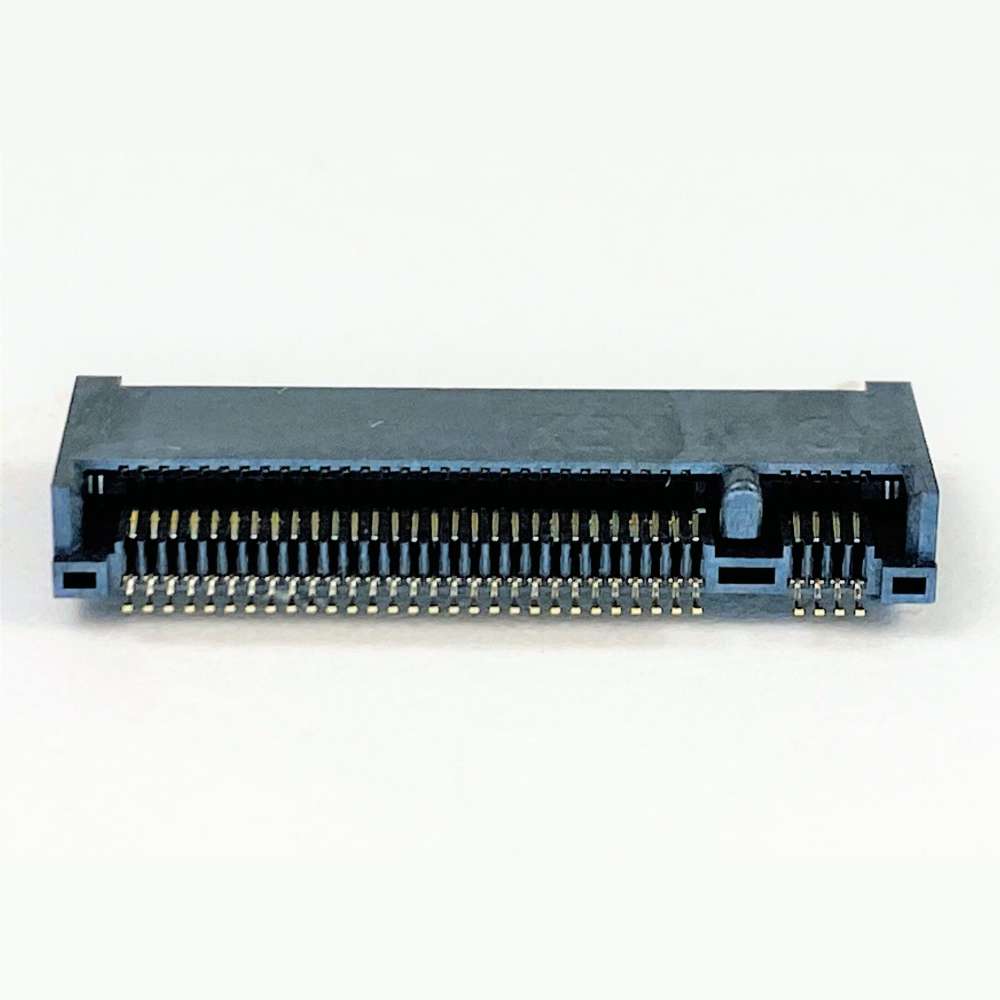

  • H=4.0mm M Key

    P/N: M2HXXABEM-XXX-IMG_9350 (2) H=4.0mm M Key

    Description: (NGFF) M.2 socket

    SPEC & Feature:

    • M.2 module socket
    • M Key type
    • Position: 67pins, Pitch=0.5mm
    • Designed for both single- and double-sided modules
    • SMT Type
    • Support PCI Express 3.0, USB 3.0, and SATA 3.0 interface
    • Connector Height, H=4.0mm
    • R/A Type, Horizontal SMD Type
    • Plastic

    Application: SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module socket, Networking Storage Device

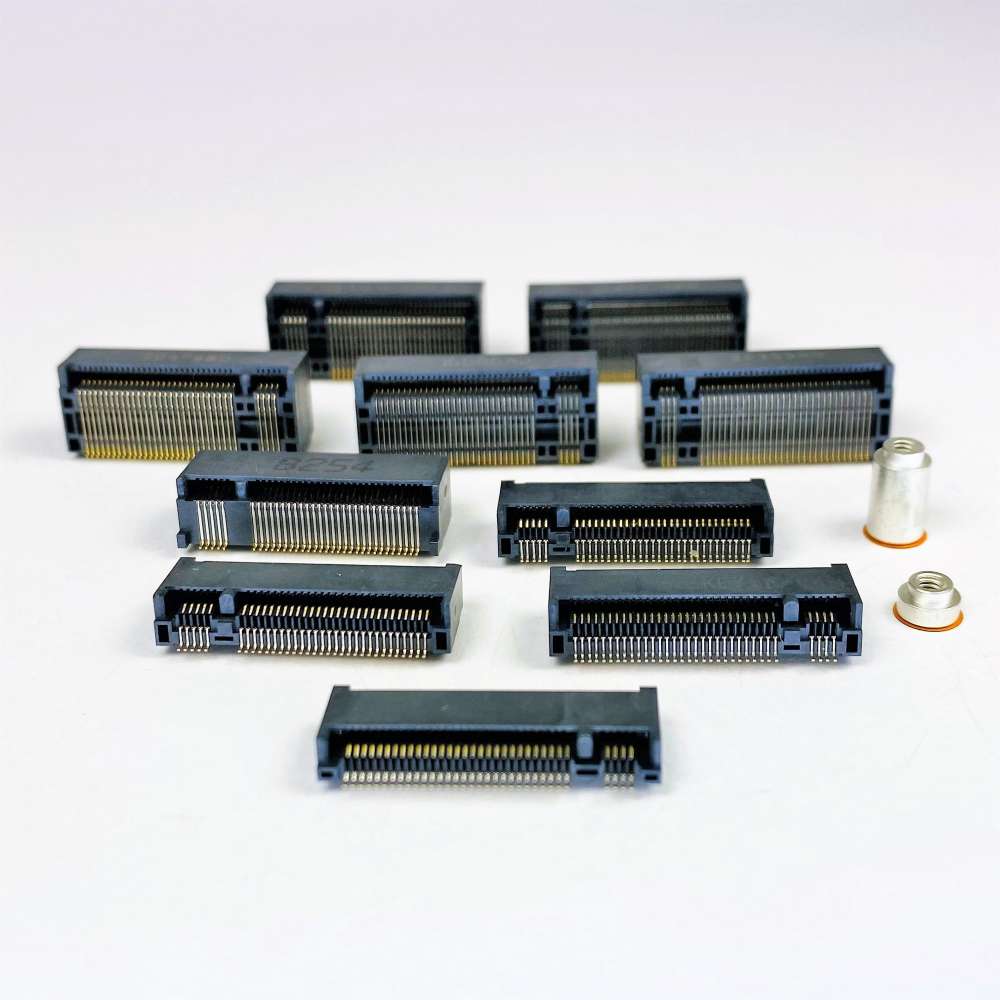

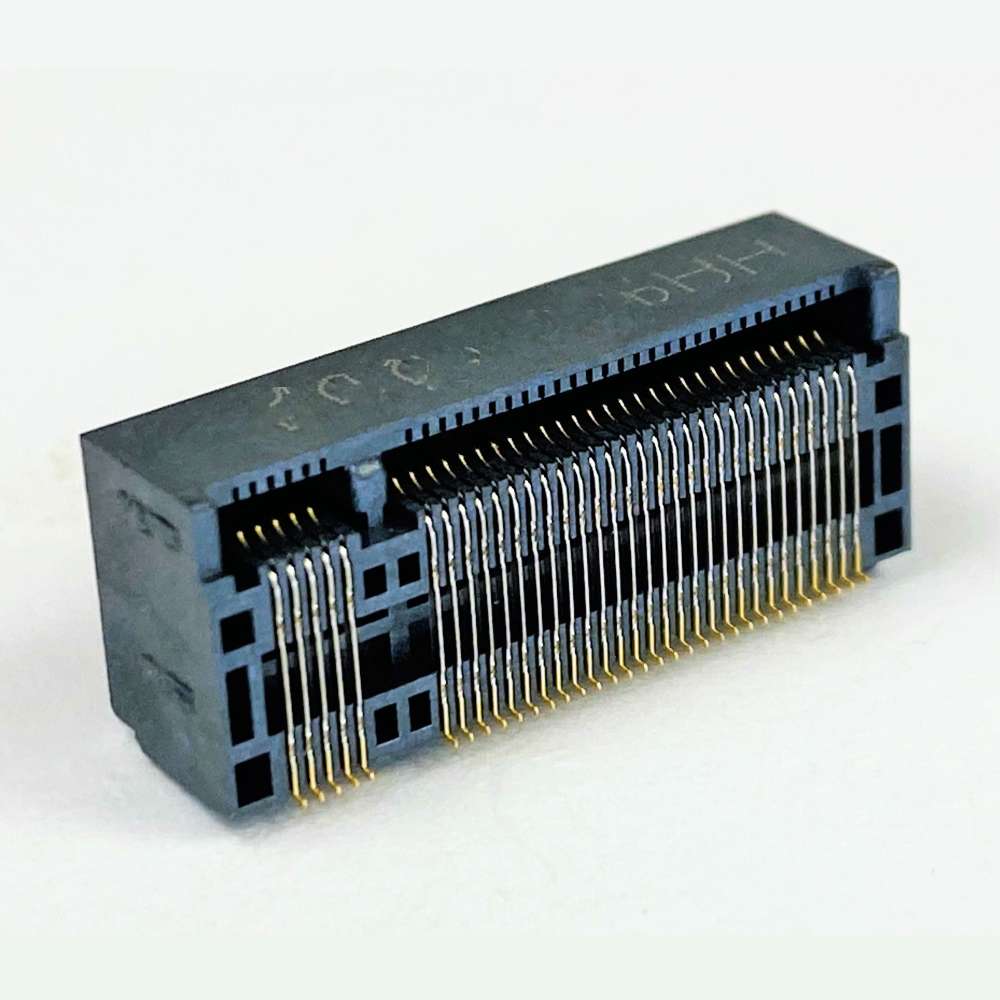

  • H=8.5mm A Key, B Key, E Key, M Key connector

    P/N: M2HXXABEM-XXX-IMG_9303 (2) H=8.5mm A Key, B Key, E Key, M Key connector

    Description: (NGFF) M.2 socket series

    SPEC & Feature:

    • M.2 connector series
    • Connector Height=8.5mm
    • Connector Key Type: A Key, B Key, E Key, M Key
    • Position: 67pins, Pitch=0.5mm
    • Designed for both single- and double-sided modules
    • Available in various standard keying options for module cards
    • Support PCI Express 3.0, USB 3.0, and SATA 3.0 interface
    • R/A Type, Horizontal SMD Type
    • Plastic

    Application: SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module socket, Networking Storage Device connector

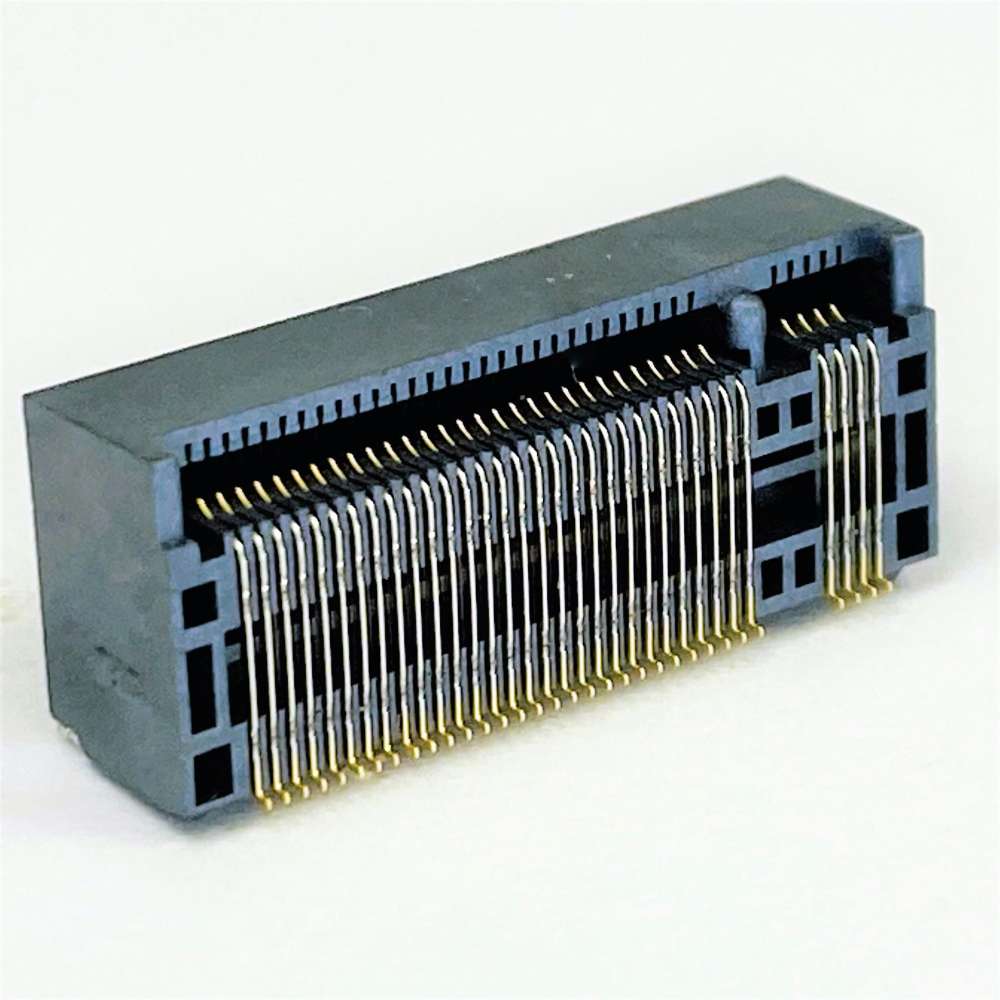

  • M.2, H=8.5mm B Key connector

    P/N: M2HXXABEM-XXX-IMG_9312 (3) M.2, H=8.5mm B Key connector

    Description: (NGFF) M.2 socket

    SPEC & Feature:

    • M.2 module connector
    • Connector Key Type: B key
    • Position: 67pins, Pitch=0.5mm
    • Designed for both single- and double-sided modules
    • Available in B key for SSD standard module cards
    • Support PCI Express 3.0, USB 3.0, and SATA 3.0 interface
    • Connector Height=8.5mm
    • R/A Type, Horizontal SMD Type
    • Plastic

    Application: SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module socket, Networking Storage Device connector

  • M.2, H=8.5mm M Key connector

    P/N: M2HXXABEM-XXX-IMG_9309 (2) M.2, H=8.5mm M Key connector

    Description: (NGFF) M.2 socket

    SPEC & Feature:

    • M.2 module connector
    • Connector Key Type: M Key
    • Position: 67pins, Pitch=0.5mm
    • Designed for both single- and double-sided modules
    • Support PCI Express 3.0, USB 3.0, and SATA 3.0 interface
    • Connector Height, H=8.5mm
    • R/A Type, Horizontal SMD Type
    • Plastic

    Application: SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module socket, Networking Storage Device connector

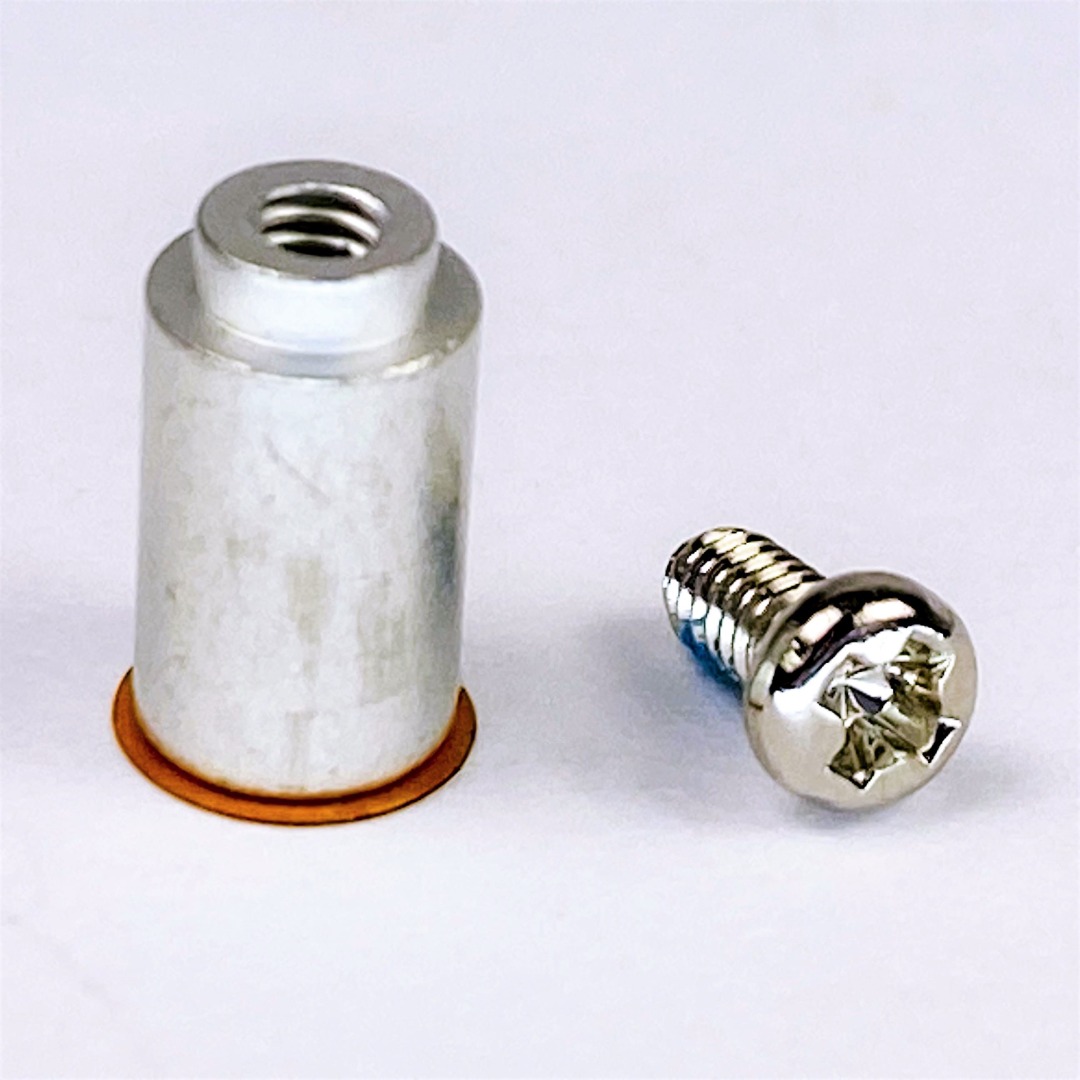

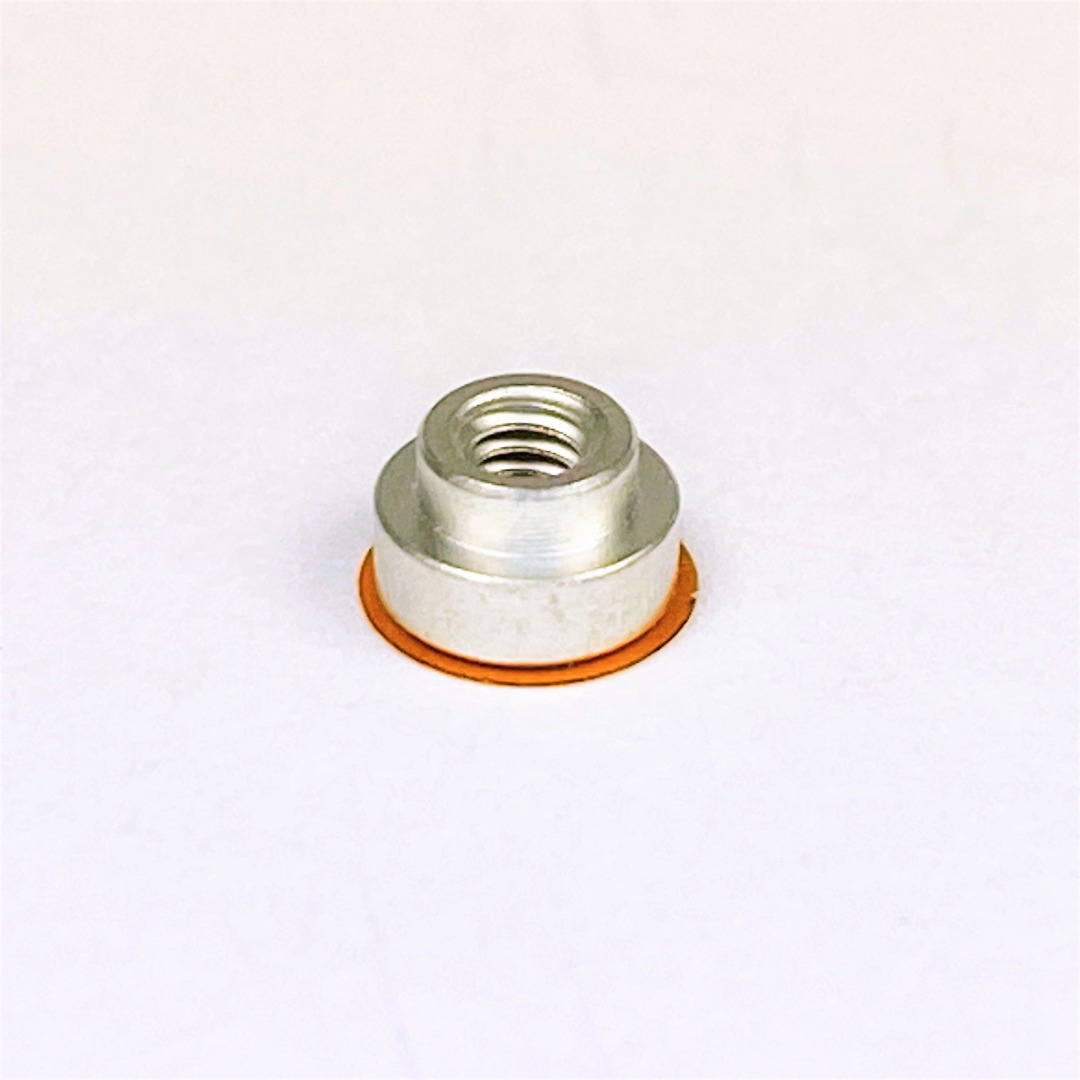

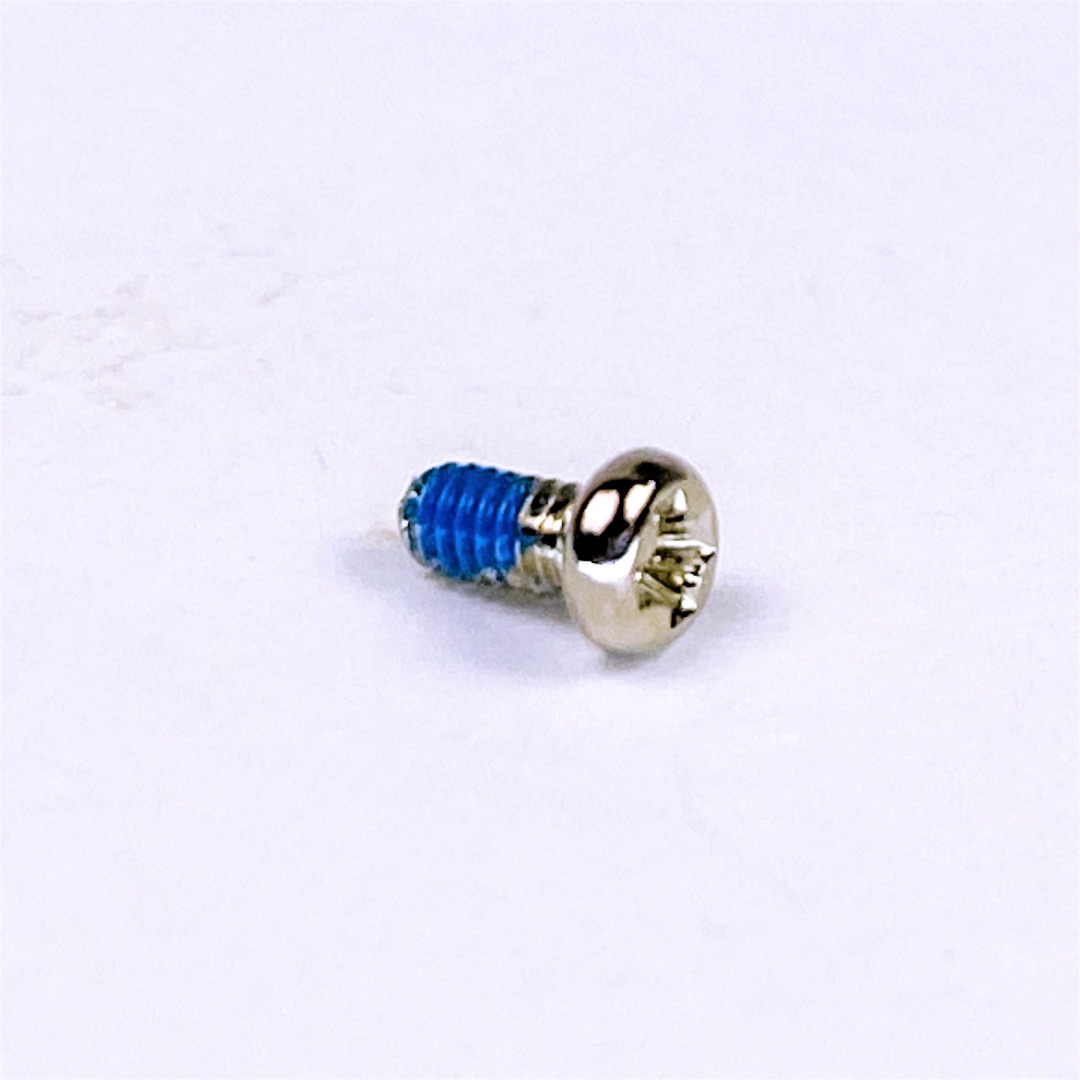

  • M.2 PCB Accessory of NUT and Screw

    P/N: M2HXXABEM-XXX-IMG_9306 (2) M.2 PCB Accessory of NUT and Screw

    Description: (NGFF) M.2 socket, Nut and Screw Accessory

    SPEC & Feature:

    • M.2 connector Nut and Screw
    • NUT with M3 Type, Screw with M3 Type
    • Support M.2 PCBA fixation
    • Available in various keying options for module cards
    • Support Multiple Connector Height, H=3.0mm, 4.0mm, 8.5mm
    • Metal Type

      • Application: SSD Flash Module Socket, PCB Board to Board Connector, Wi-Fi / BT / Wireless Module Socket, Networking Storage Device Cnnector
